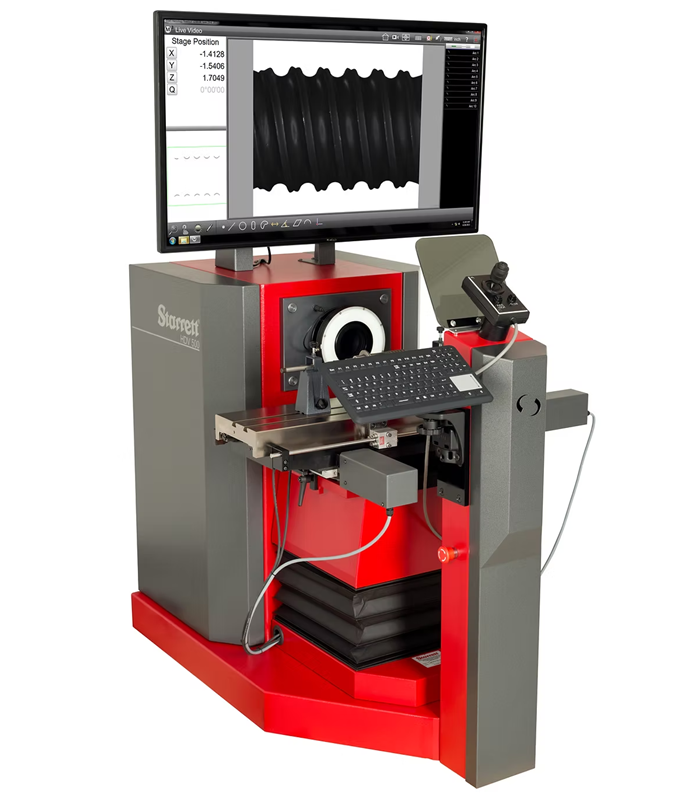

The AVR CNC Automatic Vision Systems are ideal for repetitive measurements and automatic comparisons to CAD files. Systems are available with interchangeable telecentric or dedicated zoom lenses for micron-level resolution and accurate field-of-view (FOV) measurements. With a maximum FOV of 24mm, the AVR series is capable of measuring parts with length up to 200mm or 300mm for the AVR 200 and 300, respectively. A large 60mm FOV-dedicated 0.14x lens is now available.
The operator interface is the MetLogixTM M3 software which displays a live video image of the part plus geometry tools and digital readings. The image of the part can be resized using zoom and measurements can be taken by simply touching a feature on the touch-screen monitor. M3 software capabilities also include 3-axis measurements and 2D geometric constructs (points, lines, angles, rectangles, slots, blobs). Systems are also touch probe compatible to incorporate multisensor measurement capabilities.
